Pre-sale opening Summer 2026

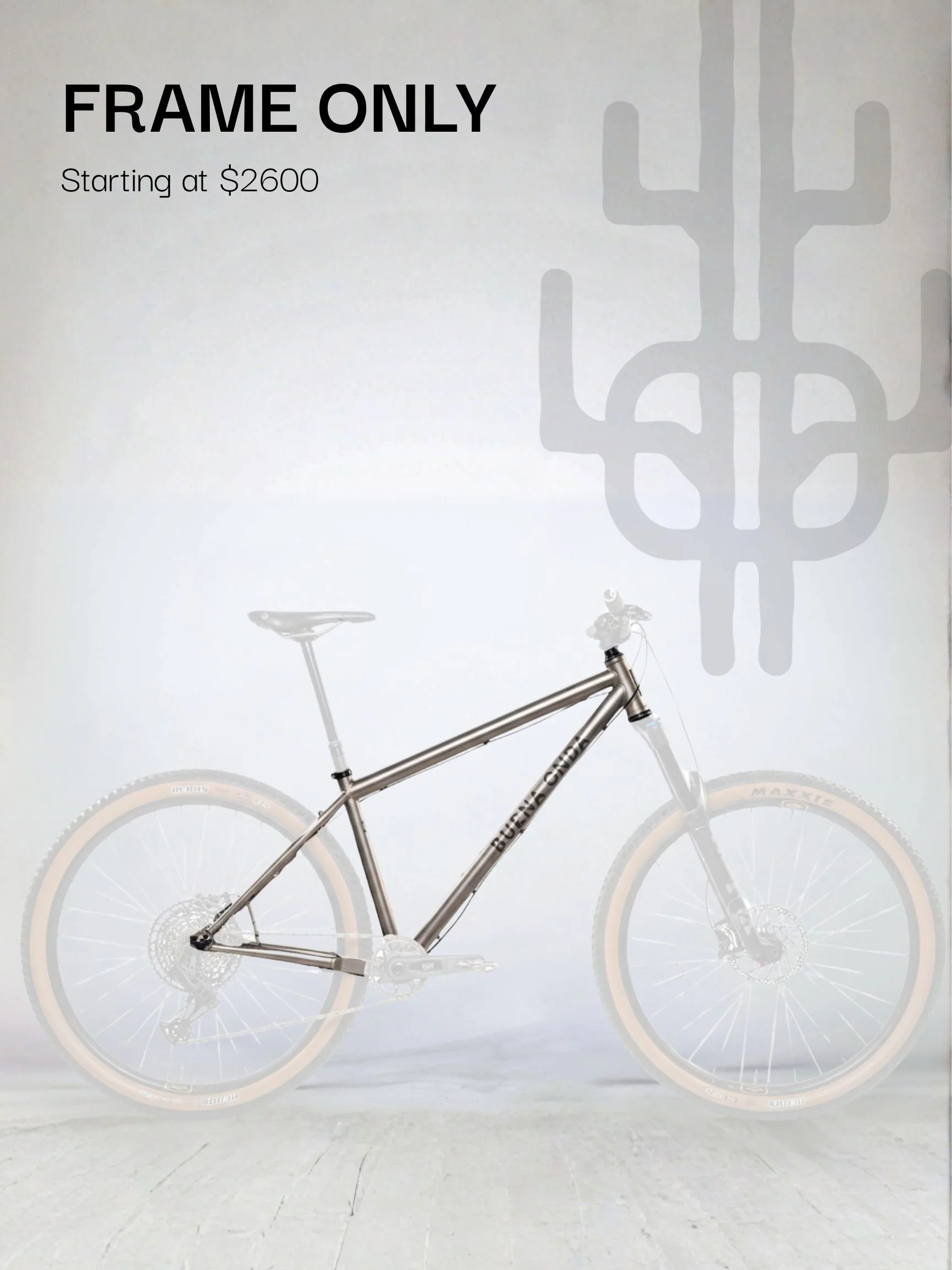

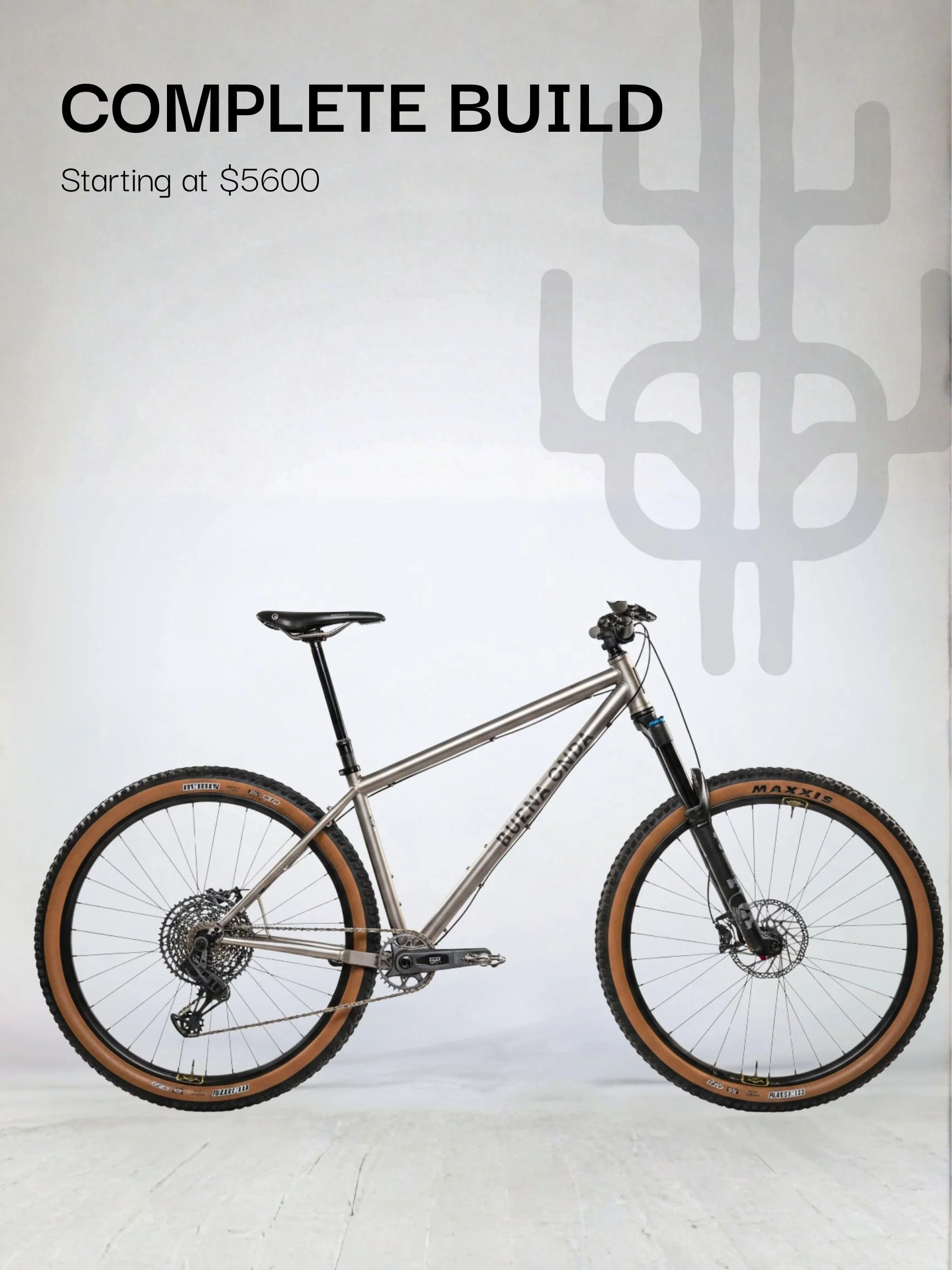

Built by our partner manufacturer in Taiwan, these batch-built frames offer an expertly crafted frame at a competitive price, available in stock sizes and setups. These start with the flagship geometry that we have tested and refined with our US-built frames, then engineered for larger-scale manufacturing. We use intentionally selected butted titanium tubing that provides an excellent combination of compliance and durability.
BATCH BUILT COLLECTION
MUSA CUSTOM COLLECTION
Currently backordered

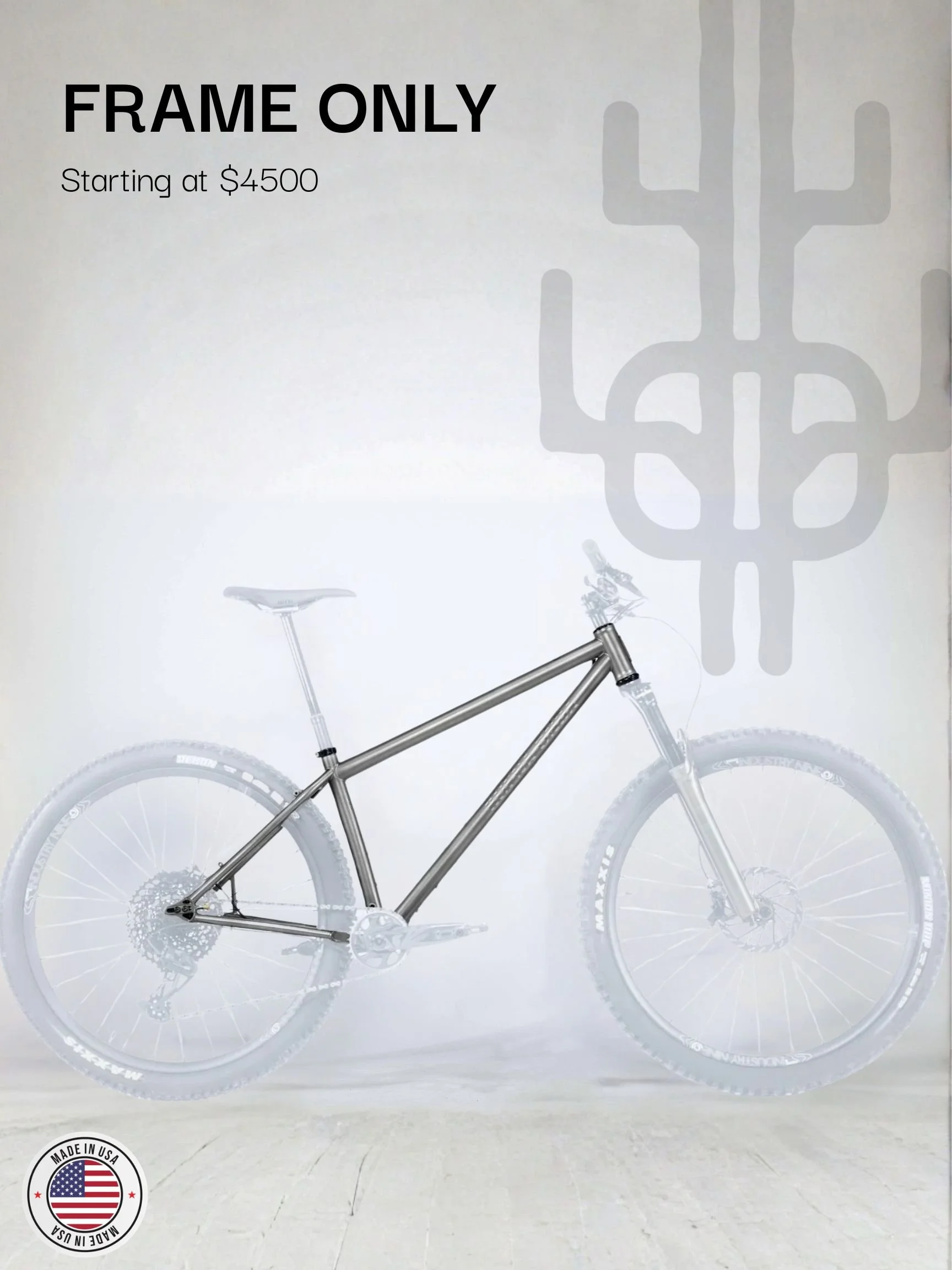

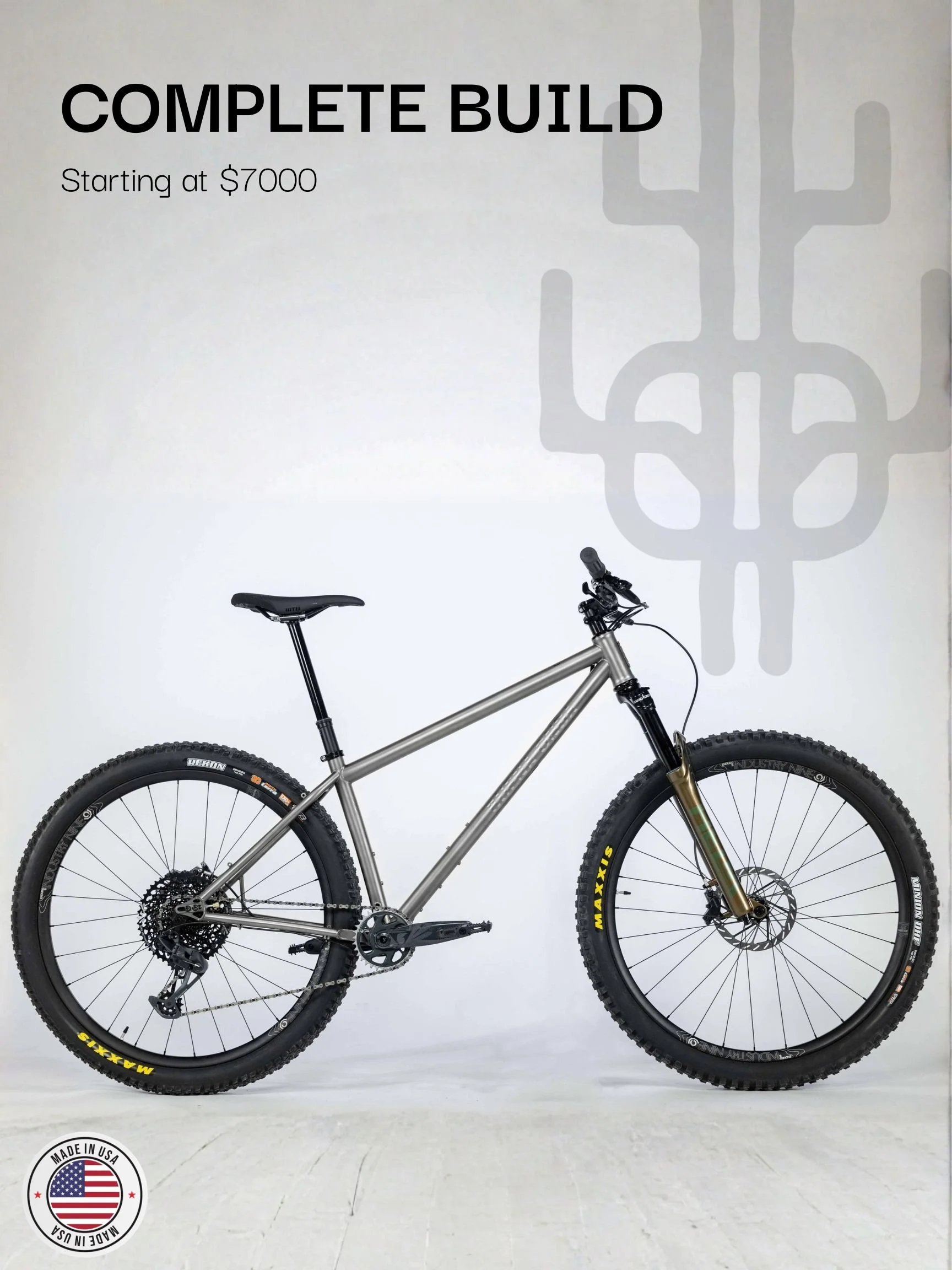

Each MUSA Build is built in the good ole USA, by our manufacturing partner in Durango, Colorado.
Your bike begins with our proven geometry, then we tailor the sizing to you. That means dialing in the fit so you’re not stuck choosing between standard sizes. From there, you select the components that match how and where you ride for a custom experience.
Designed for the Colorado Trail, whether for a day ride or the full 539 miles, the Buena is built to go the distance. Loaded or unloaded, over high passes and technical singletrack, it’s made to handle whatever the trail throws down.
It starts with a handcrafted frame, welded from thoughfully selected tubesets for the oh-so-right combination of vertical compliance and lateral stiffness. Built around a 130mm fork, the Buena balances comfort and capability with geometry that stays grounded in function, not fads—66.5° head tube, 75.5° straight seat tube.

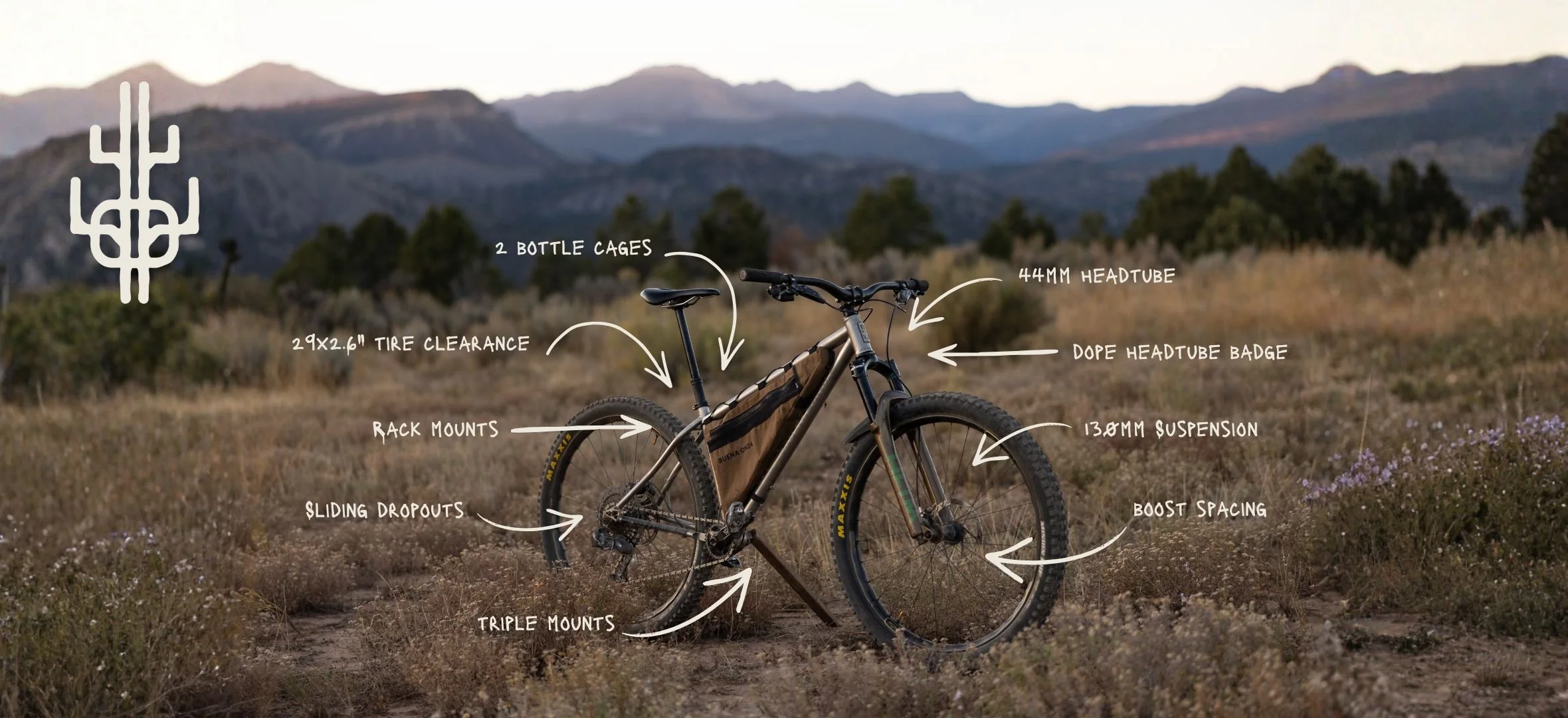

Room for racks, bottles, and a large frame bag means it's ready for long days and bigger rides. From local singletrack to multi-day routes, it’s built for anything, anywhere.
Tech Specs/Details
-
Tubing: US Sourced, Size Specific, Straight Gauge, 3/2.5 CWSR Titanium
Head Badge: Custom designed & Hand-Fabricated by Revolution Jewelry
Finish: Ceramic Bead Blast with Brushed Logo
-
Optimal Fork Travel for Suspension Builds: 130mm
Rear Hub Spacing: 148x12
Bottom Bracket: T47 Threaded, 73mm
Dropouts: Paragon Sliding Dropouts: comes standard with traditional dropout except for Transmission build. See all additional dropout insert options here (available separately).
Seatpost: Straight Seattube, 31.6mm ream, 34.9 Collar
Cable Routing: Single port, non-driveside, internally tubed through downtube and externally routed under chainstays
Bottle Mounts: 2x bottle cages in frame, Triple bottle cage mounting on downtube
Rack Mounts: Lower rack eyelets on dropouts standard on all frames; Frames can utilize a rack mount seat collar for upper compatibility (optional) *production rack mounts differ from pictures
Headtube/Headset: 44mm Headtube/ ZS44/28.6 EC44/40 Headset
Max tire clearance: 29x2.6
-
Buena Onda offers a 5 year limited warranty on all Titanium frames. In the event your frame is outside of the warranty period, we will work with you to maintain a reasonable repair cost.
-
Buena Onda Bikes is a little different than your average bicycle manufacturer. We operate on a small batch, “community supported bicycle” model. Read more about that here. Every bike is hand crafted in Durango, CO, from domestically sourced tubing.
In order to get a Buena, you first place a 50% deposit on your frame or build. The remainder will be due via invoice approximately 6-8 weeks after the initial deposit. After your second invoice is paid, your bike will then get built, boxed, and delivered to your door approximately 12-14 weeks after ordering. -
Geometry
Trail-oriented geometry based on a 130mm fork, sagged at 20% and 29"x2.6" tires
| Buena Onda Mountain Geo Chart (all measurements in mm unless otherwise noted) | |||||
|---|---|---|---|---|---|
| Geo | Small | Medium | Large | Extra Large | XXL |
| A. Effective Top Tube | 597 | 619 | 645 | 668 | 694 |
| B. Approx Stand Over | 732 | 755 | 770 | 805 | 833 |
| C. Reach | 433 | 452 | 475.5 | 497 | 519 |
| D. Stack | 616 | 625 | 635 | 644 | 657 |
| E. Total Seat Tube Length (C-T) | 380 | 410 | 430 | 475 | 510 |
| F. Headtube Length | 105 | 115 | 125 | 135 | 150 |
| G. Headtube Angle | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| H. Seat Tube Angle (straight ST) | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| I. BB Drop | 58 | 58 | 58 | 58 | 58 |
| J. BB Height | 319 | 319 | 319 | 319 | 319 |
| K. Chainstay Length | 435-455 | 435-456 | 435-457 | 435-458 | 435-459 |
| L. Fork Length Axle to Crown | 510.5 | 510.5 | 510.5 | 510.5 | 510.5 |
| M. Fork Offset | 44 | 44 | 44 | 44 | 44 |
| N. Wheelbase (dropouts full forward) | 1155 | 1178 | 1205 | 1231 | 1259 |
| Crank Arm Length | 170 | 175 | 175 | 175 | 175 |
| Recommended Rider Height | 5'1"-5'6" | 5'5"-5'11" | 5'10"-6'2" | 6'1"-6'5" | 6'4"-Up |
| Stem Length | 32 | 32 | 40 | 40 | 40 |
| Based on: -130mm fork sagged 20% (32.5mm) -29x2.6in tires | |||||
